This guide showcases the significance of Type L copper pipe thickness in plumbing projects throughout the U.S.. Experts such as builders, engineers, and procurement managers depend on precise copper pipe specifications. This data is essential for pipe sizing, calculating pressures, and ensuring long-lasting setups. Our overview employs official data from Taylor Walraven and ASTM B88 to aid in selecting the right piping materials and components.

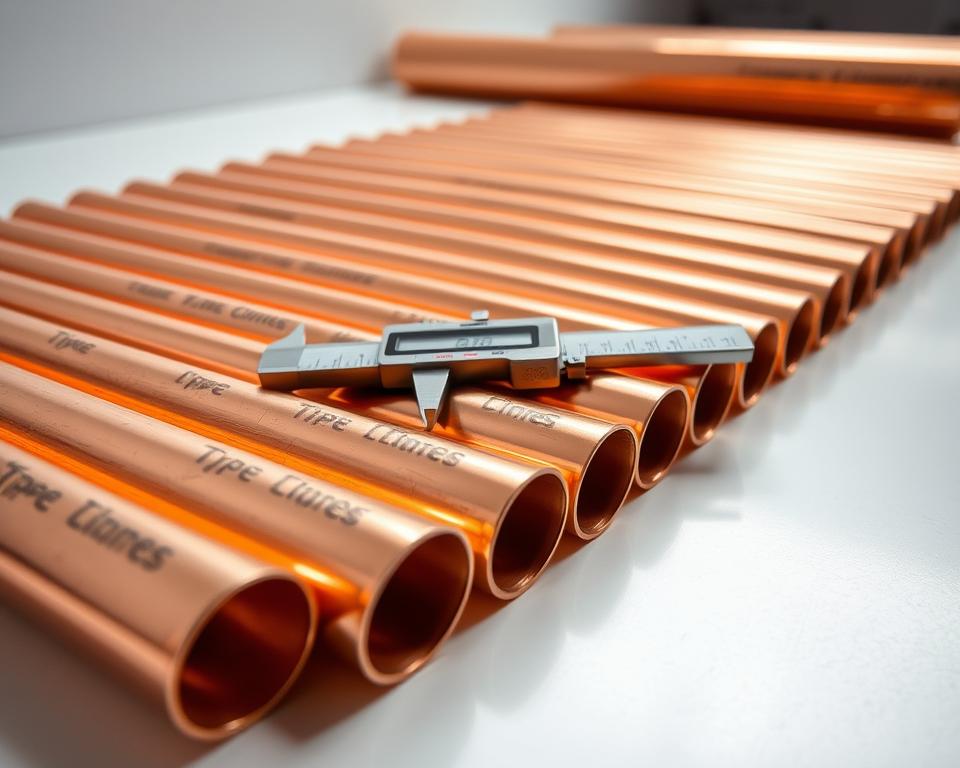

Click Here To View 5/8 Copper Tubing
Type L copper pipe provides a middle ground between strength and cost, making it ideal for diverse water distribution and mechanical systems. Understanding the subtleties of pipe wall thickness, nominal vs actual sizes, and how they affect internal diameter is vital. This knowledge enables crews to choose the most appropriate copper piping for both residential and commercial projects. The article also mentions relevant standards, such as ASTM B88 and EN 1057, along with associated ASTM specs such as B280 and B302 specs.
Key Takeaways
- Type L thickness is a frequent pick for piping because of its mix of strength and economy.
- Key sources such as ASTM B88 and Taylor Walraven supply the size and weight info needed for precise sizing.
- Pipe wall thickness impacts inside diameter, pressure capacity, and flow rates.
- Procurement must consider market prices, temper, and supplier options like Installation Parts Supply.
- Knowledge of standards (ASTM B88, EN 1057) and related specs (B280, B302) guarantees installations that meet code.
Introduction To Copper Pipe Categories And Type L Positioning
Copper tubing is categorized into various grades, each with its specific wall thickness, price point, and application. Engineers depend on ASTM codes and EN 1057 when selecting materials for projects.
Comparison of K, L, M, and DWV highlights where Type L fits in. Type K copper, with its thick walls, is perfect for buried lines and high-stress areas. Type L, with a standard wall, is the go-to for indoor water lines. Type M is thinner, suitable for cost-conscious projects with lower stress requirements. DWV is for non-pressurized systems and should not carry potable water.
This section describes the typical applications and reasoning for selecting Type L. For many projects, the thickness of Type L offers a balance of pressure ratings and thermal durability. It’s suitable for branch lines, hot-water systems, and heating and cooling due to its toughness and moderate weight. This type is compatible with diverse fittings and is available in drawn and annealed tempers.
Standards govern the dimensions and tolerances of copper piping. ASTM B88 is central for imperial sizes, outlining Types K, L, and M. EN 1057 is the EU standard for sanitary and heating applications. Other ASTM specifications cover other applications in the piping trade.
A concise comparison table is included for easy checking. For precise measurements, refer to the B88 standard and manufacturer data like Taylor Walraven data.
| Type | Wall Profile | Common Uses | Pressure Use |
|---|---|---|---|
| Grade K | Heavy wall; max protection | Underground service, domestic water service, fire protection, solar, HVAC | Allowed |
| Grade L | Standard wall; strength/cost balance | Indoor water, branches, hot water, commercial plumbing | Allowed |
| Grade M | Thin wall; cost-efficient | Above-ground residential, light commercial | Yes, reduced pressure limit |
| Drain Waste Vent | Nonpressurized drainage profile | Drains, vents; no pressure water | Not Allowed |
Local codes and job specs must match with ASTM rules and EN 1057. Verify fitment with connectors and joinery before finalizing your choice of plumbing material.
Details On Type L Copper Tubing Thickness
Type L copper wall thickness is vital to a tube’s durability, pressure rating, and flow capacity. This section outlines ASTM B88 nominal values, lists common sizes with their gauges, and explains how OD and ID affect pipe sizing.
ASTM nominal tables show standard outside diameters and wall thickness for Type L pipe. These numbers are essential for engineers and plumbers when selecting pipes and connectors from manufacturers like Mueller Streamline and Taylor Walraven.
Type L ASTM B88 Nominal Wall Thickness Chart Overview
The table below lists common nominal dimensions, their Type L wall thickness, and weight per foot. These figures are typical for pressure ratings and material takeoffs.
| Size (Nom) | OD | Wall Thickness | Lbs/Ft |
|---|---|---|---|
| 1/4″ | 0.375″ | 0.030″ | 0.126 |
| 3/8″ | 0.500″ | 0.035″ | 0.198 |
| 1/2″ | 0.625″ | 0.040″ | 0.285 |
| 5/8″ | 0.750″ | 0.042″ | 0.362 |
| 3/4″ | 0.875″ | 0.045″ | 0.455 |
| 1″ | 1.125″ | 0.050″ | 0.655 |
| 1-1/4″ | 1.375″ | 0.055″ | 0.884 |
| 1-1/2″ | 1.625″ | 0.060″ | 1.14 |
| 2″ | 2.125″ | 0.070″ | 1.75 |
| 2-1/2″ | 2.625″ | 0.080″ | 2.48 |
| 3″ | 3.125″ | 0.090″ | 3.33 |
| 3-1/2″ | 3.625″ | 0.100″ | 4.29 |
| 4″ | 4.125″ | 0.110″ | 5.38 |
| 5″ | 5.125″ | 0.125″ | 7.61 |
| 6″ | 6.125″ | 0.140″ | 10.20 |
| 8″ | 8.125″ | 0.200″ | 19.28 |
| 10″ | 10.125″ | 0.250″ | 31.10 |
| 12″ | 12.125″ | 0.280″ | 40.40 |
Common Nominal Sizes And Corresponding Wall Thickness
Fast reference numbers are essential on job sites. For instance, a 1/2-inch pipe has a Type L thickness of 0.040 inches. A 1″ nominal has a 0.050-inch wall. Bigger pipes include 3″ at 0.090″ and 8″ at 0.200″. These numbers assist in estimating piping costs when comparing 1/2 inch copper prices or bigger sizes.
How OD, ID And Wall Thickness Influence Internal Diameter
Nominal size is a designation, rather than the real outside diameter. ASTM B88 nominal charts provide outside diameter figures. In most cases, the outside diameter is approximately 1/8 inch bigger than the name suggests.
Inside diameter is OD minus two times the metal wall thickness. Thicker walls reduces internal diameter and available flow area. This difference affects friction loss, pump sizing, and fitting matching.
Practitioners conduct sizing math utilizing OD and wall specs from ASTM charts or manufacturer tables. Accurate ID values guarantee proper choice of plugs, pressure tests, and system components for a given system.
Chart Highlights For Type L Copper Pipe Dimensions
This section outlines key chart values for Type L copper tubing to assist in sizing, picking fittings, and material takeoff. The chart below shows selected nominal sizes with OD, wall thickness, and linear weight. Reference these figures to confirm compatibility with connections and to estimate transport needs for big pipe installations.
Read the following rows by size name, then check the OD and thickness to compute ID. Note the heavier weights for bigger pipes, which impact shipping and installation planning for items such as an 8 copper pipe.
| Size | OD | Wall Thick. | Inside Diameter (ID) | Weight per Foot |
|---|---|---|---|---|
| 1/4″ | 0.375″ | 0.030″ | 0.315″ | 0.126 lb/ft |
| 3/8″ | 0.500″ | 0.035″ | 0.430″ | 0.198 lb/ft |
| 1/2″ | 0.625″ | 0.040″ | 0.545″ | 0.285 lb/ft |
| 3/4″ | 0.875″ | 0.045″ | 0.785″ | 0.455 lb/ft |
| 1″ | 1.125″ | 0.050″ | 1.025″ | 0.655 lb/ft |
| 2″ | 2.125″ | 0.070″ | 1.985″ | 1.75 lb/ft |
| 3″ | 3.125″ | 0.090″ | 2.945″ | 3.33 lb/ft |
| 6″ | 6.125″ | 0.140″ | 5.845″ | 10.20 lb/ft |
| 8″ | 8.125″ | 0.200″ | 7.725″ | 19.28 lb/ft |
| 10″ | 10.125″ | 0.250″ | 9.625″ | 31.10 lb/ft |
| 12″ | 12.125″ | 0.280″ | 11.565″ | 40.40 lb/ft |
Big copper pipes like 6″, 8″, 10″, and 12″ show significantly greater weight. Anticipate heavy lifting, larger supports, and specialized joining methods when designing these lines. Installers who provide piping services must account for rigging and transport at the jobsite.
How to read tube charts: start with the nominal size, confirm the OD value, then note the type l copper wall thickness to find the ID by deducting two walls from the OD. Use the weight per foot column for estimates and structural load checks. For choosing plugs and pressure testing, verify dimensions against manufacturer plug charts and pressure tables.
Considerations For Performance: Flow, Temperature, And Pressure
Understanding pipe capability involves balancing strength, temperature limits, and hydraulic flow. In the plumbing industry, designers use pressure tables and hydraulic guides to select the right tube type. They have to factor in mechanical demands and flow targets for every line when selecting Type L.
Comparing Working Pressures Of K, L And M Copper Pipes
Standard ASTM charts show working pressure trends for different sizes and wall thicknesses. Type K has the highest working pressure, then Type L, and then Type M. It is crucial for designers to check the specific rating for the selected size and hardness before finalizing a design.
Impact Of Wall Thickness On Pressure Limits And Safety
Type L thickness directly impacts the maximum allowable internal pressure. Heavier walls boost burst and allowable stress limits, providing a greater safety margin versus mechanical damage or temperature shifts. The thickness also affects the permissible bending radius and might dictate the choice between drawn or annealed tube for certain joining methods.
Flow Rates, Velocity Limits, And Pressure Drop Against Pipe Size
Increasing wall thickness shrinks the internal diameter, reducing the flow area. This reduction leads to higher velocities at the same GPM, raising pressure drop. When sizing pipes, calculate the ID from the OD minus twice the wall thickness to accurately determine Reynolds number and friction factor.
| Nominal Size | Example Wall (Type K/L/M) | Approx. ID (in) | Relative Working Pressure | Loss Factor |
|---|---|---|---|---|
| 1/2″ | 0.049 / 0.040 / 0.028 | 0.546 / 0.628 / 0.740 | K > L > M | Smaller ID = more friction |
| 1″ | 0.065 / 0.050 / 0.035 | 1.030 / 1.135 / 1.250 | K > L > M | Type l copper wall thickness reduces flow area, increases loss |
| 3″ | 0.120 / 0.090 / 0.065 | 2.760 / 2.900 / 3.030 | K > L > M | Drop varies more at high flow |
Use friction loss charts for copper tubing or run a hydraulic calculation for every loop. Planners need to check speed caps to prevent erosion, noise, and premature wear. Heat derating is needed where joints or soldered assemblies may lose pressure capacity at higher operating temperatures.
Practical pipe sizing merges allowable working pressure, type l copper wall thickness, and expected flow. The plumbing industry standard practice is to consult ASTM tables and local code limits, then validate pump specs and losses to reach a reliable system.
Specification Requirements And ASTM Standards For Copper Tubing
Grasping the governing standards for copper pipes is vital for meeting specification requirements. Blueprints and POs often reference ASTM and EN codes. These documents outline dimensions, tolerances, and acceptable tempers. Designers rely on them to guarantee the material, joining methods, and testing align with the planned use.
ASTM B88 is the baseline for potable water tubes in the United States. It details nominal sizes, outside diameters, thicknesses, tolerances, and weights for K, L, M types. The spec also covers soft and hard tempers and compatibility with different connectors.
Standard B280 governs refrigeration tubing for cooling systems, with distinct pressure ratings and dimensional controls versus B88. ASTM B302 and B306 address drainage and threadless copper for mechanical/waste systems. Standard EN 1057 offers metric equivalents, catering to EU jobs and metric specifications.
Temper significantly impacts installation. Soft copper is softer, making it easier to bend on site. It’s suitable for flared and many compression fittings once prepped. Conversely, hard copper is stiffer, resisting denting, and performs well with sweat fittings and for straight runs.
Dimensional tolerance is a key issue. ASTM tables outline OD tolerances varying slightly depending on size. A precise outside diameter is essential for proper fitting and sealing. Defining tolerances in purchasing can avoid field assembly issues.
Suppliers like Petersen and Taylor Walraven offer dimension charts. These tools help with selecting plugs and estimating weights. Using these charts with standards ensures compatibility between material and fittings. This approach minimizes callbacks during installation and simplifies ordering.
| Standard | Primary Scope | Relevance to Type L |
|---|---|---|
| ASTM B88 | Seamless copper water tube; sizes, wall thickness, tolerances, weights | Defines Type L dimensions, tempers, and joining suitability |
| ASTM B280 | Copper tube for ACR; pressure ratings and dimensions | Used when copper serves HVAC refrigeration systems |
| B302/B306 | DWV and threadless specs | For drainage/special use |
| EN 1057 | Seamless copper tubes for water and gas in metric sizes | Specifies metric OD and wall values for international projects |
Job specs must state the required ASTM standards, allowed tempers, and OD tolerance class. This detail prevents mismatches at installation and ensures system performance under load and during commissioning tests.
Special applications may necessitate extra rules. Med-gas and industrial lines require specific standards and restrictions. Municipal rules may limit copper use for natural gas in certain areas due to embrittlement risks. Always verify authorities having jurisdiction before deciding.
Pricing Examples And Wholesale Sourcing For Copper Tubing
Pricing for Type L pipe changes based on the copper market, manufacturing costs, and supply issues. Contractors need to watch copper indexes when planning budgets. For small jobs, retailers quote by the foot. For larger orders, wholesalers offer reels or straight lengths with volume discounts.
Before buying, get prices for copper pipe 1/2 inch price and 3 inch copper pipe price. Small 1/2″ L pipe often appears as coil or straight stock and is sold by foot or roll. 3″ Type L carries a higher 3 inch copper pipe price per linear foot due to material weight and manufacturing effort.
Price factors to watch
Commodity copper swings, factory delays, and temper choice (soft vs hard) are primary cost drivers. Drawn, hard temper might be pricier than soft copper. Coil versus straight lengths affect handling and shipping charges. Request ASTM B88 certification and temper details on every bid.
Costs for big pipes
Large copper tube sizes raise costs quickly. An 8 copper pipe is much heavier than smaller tubes. The added mass boosts shipping fees and requires heavier supports at the site. Making large pipes, special fittings, and annealing steps add to the final installed price.
| Dimension | Typical Unit Pricing Basis | Cost Factors |
|---|---|---|
| 1/2 in Type L | By foot/coil | Coil handling, small-diameter production, market copper price |
| 3 in Type L | By linear foot | Weight, fab, fittings |
| 6″–10″ large copper tube | Per linear foot with freight add-on | Weight per foot, shipping, support design, annealing |
Wholesale sourcing and distributor note
For bulk buying, consider well-known wholesale distributor channels. Installation Parts Supply stocks Type L and other grades and offers lead-time estimates, bulk discounts, and compliance documents. Procurement teams should verify OD and wall specs and check format—roll or stick—to match field requirements.
When requesting bids, request detailed quotes that breaks out raw-material cost, fabrication, and freight. This detail helps compare quotes for the same pipe grade and prevents shock at installation.
Methods Of Installation, Joining, And Field Services
Type L copper requires careful handling during setup. The right end preparation, flux, and solder alloy are essential for durable connections. Drawn temper is best for sweat solder, whereas soft tube is preferred for bending and flare fittings.
Soldering, compression fittings, and flares have unique uses. Sweating creates permanent joints for water lines, meeting ASME or local codes. Compression fittings are good for fast work in tight spaces and for fixing leaks. Flare fittings are ideal for soft copper and gas or refrigeration lines, ensuring sealed joints.
Field services teams need to follow a strict plan for testing and safety. Plugs need to fit the tube dimensions and account for wall gauge. Always consult maker data for safe test pressures. Log results and check connections for solder fillet quality and ferrule seating.
Support spacing is key for durability. Follow spacing rules based on size to stop sag. Larger diameters and heavy runs require closer hangers. Anchors and expansion allowances prevent stress at joints.
Thermal expansion must be planned for on long lines and heating loops. Provide expansion loops, guides, or slides for thermal shifts. Copper’s thermal expansion coefficient is significant in solar and hot-water systems.
Common installation pitfalls are confusing specs. Confusing nominal size with actual OD results in mismatched parts. Using Type M in high-pressure applications can reduce safety margins. Check tolerances with standards before assembly.
Codes in the plumbing industry set use limits and material specs. Check local municipal codes for water, med-gas, and fire jobs. Some areas limit copper for natural gas; follow ASTM guidance on cracking risks.
Handling large tubes needs equipment and care during moving. Heavy pipes such as 8-10 inch require rigging plans, straps, and careful support to avoid dents or bends that compromise fittings.
Adopt consistent documentation and training for copper pipe field services teams. This reduces rework, improves test pass rates, and keeps projects on schedule in building construction.
Wrap Up
The wall thickness of Type L copper offers a compromise for various piping jobs. It has a standard wall, superior to Type M in pressure capacity. However, it’s less expensive and lighter weight than Type K. This makes it a versatile choice for drinking water, heating, and cooling systems.
Always check ASTM B88 and vendor tables, such as Taylor Walraven, for specifications. These charts detail OD, nominal wall thickness, ID, and weight per foot. Ensuring these specifications are met is key for correct hydraulic calculations and fitting match. This includes sweat, comp, and flare methods.
When planning your budget, watch material costs. Check wholesale distributors such as Installation Parts Supply for availability and compliance certificates. Remember to consider working pressures, temperature impacts, support spacing, and local codes. This assists in achieve installations that are long-lasting and code-compliant.
