An intermittently bonded ribbon production system is designed to produce flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet accommodates the group’s flexibility within a compact cable core.
In contrast with fully bonded ribbons, intermittent bonded ribbons feature discrete bonding points at predetermined intervals. This strategic placement enables the fibers to maintain alignment while the ribbon can bend and roll into circular loose tubes and other confined spaces.
Fiber network engineers apply this technique when faced with constraints in duct space, splice closures, and equipment racks. A properly engineered ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Fiber Draw Tower Fiber Coloring Machine Fiber Coloring Machine
Key Takeaways
- A bonded ribbon production system supports compact and flexible fiber layouts.
- Separated bond points maintain optical fiber order without creating a rigid ribbon.
- Flexible ribbon structures allow manufacturers to place more fibers inside compact circular cables.
- Consistent fiber alignment makes mass fusion splicing quicker and easier.
- Ribbon technology is used across data centers, telecom routes, and optical access networks.
Intermittently Bonded Ribbon Production Line Overview
Intermittently bonded ribbon manufacturing allows the creation of fiber designs that balance compactness with usability. This method involves placing bonds at predetermined intervals, allowing for the movement of fiber subunits between these points.
This technique facilitates the incorporation of a higher number of fibers within constrained duct spaces. It also preserves the organized ribbon structure, essential for efficient splicing and cable assembly processes.
How Does An Intermittently Bonded Optical Fiber Ribbon Work?
A flexible intermittently bonded optical ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds are left flexible, enabling the ribbon to adopt various configurations without rigidification.
The design is frequently known as a rollable, flexible, or spider web ribbon. It differs from the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
For splice preparation, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers create space-efficient bundles, optimizing space utilization within the cable.
Why High-Density Fiber Networks Need Flexible Ribbon Technology
Network architects face the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure enables ribbon groups to be packed into smaller cable cores, preserving fiber order.
The fiber density ratio is a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding enhances this ratio, allowing ribbon groups to occupy available spaces within the cable.
For installers, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

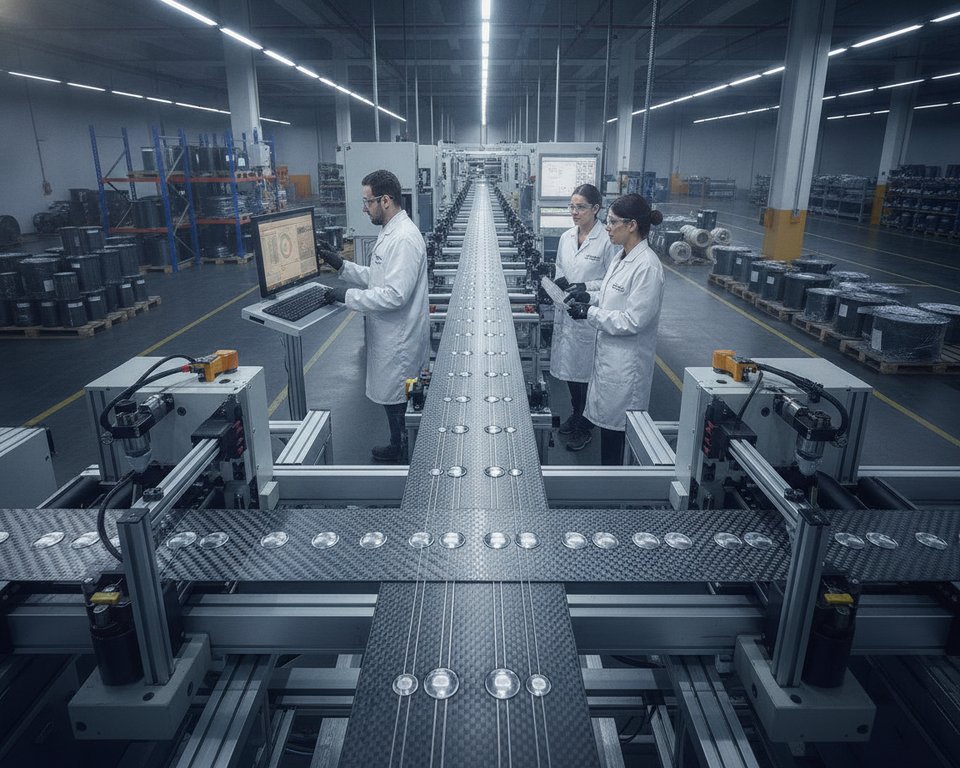

Intermittent Bonded Ribbon Production Line
| Ribbon Feature | Intermittently Bonded Ribbon Design | Conventional Continuous Ribbon |
|---|---|---|
| Bonding pattern | Individual bond points at controlled spacing | Continuous bonds along the ribbon length |
| Fiber shape between bonds | Can curl or roll to fit compact cable spaces | Stays mainly flat and planar |
| Splice preparation position | Can be arranged flat for mass fusion splicing | Already held in a fixed flat ribbon form |
| Cable packing function | Allows compact and flexible subunit positioning | Uses a more rigid ribbon stack arrangement |
| Common cable use | Flexible flat cable and high-density fiber cable designs | Traditional flat ribbon cable designs |
Construction And Material Requirements For Intermittent Bonded Ribbon
An intermittent bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture enables high-density cable structures while allowing effortless separation during handling, routing, and splicing.
Material selection significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must maintain its fibers securely without imparting undue stiffness to the ribbon.
Fiber Count And Subunit Arrangement
Intermittent bonded ribbons can accommodate 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber ribbon commonly uses six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
Controlled gaps introduced between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Element | Typical Arrangement | Process Purpose |
|---|---|---|
| Number of fibers | 4, 8, 12, 24, or up to 36 fibers | Matches cable density and splice capacity |
| Subunit configuration | Two neighboring fibers in each optical fiber subunit | Allows controlled separation between fiber groups |
| Spacing within each subunit | Touching or up to 1.5 fiber diameters | Keeps the subunit profile compact and stable |
| Subunit separation gap | Approximately 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
Wet-On-Wet Bonding And UV-Curable Resin
The coating and bond systems frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
This process creates a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
UV-curable resin materials can blend at the interface before curing. This facilitates molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Core Equipment In An Intermittent Bonded Ribbon Production Line
A fiber ribbon line integrates advanced motion control with meticulous material handling. Each station ensures fibers remain aligned, clean, and stable from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to produce flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff And Tension Control Equipment
Payoff units deliver individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
In a fiber ribbon line, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Discrete Bond Applicator And Coating Die
A coating die places a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
A bond applicator then applies a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Line Equipment | Main Function | Production Benefit |
|---|---|---|
| Payoff and tension unit | Delivers fibers while maintaining regulated tension | Minimizes twisting and uneven fiber loading |
| Subunit coating die | Creates coated optical fiber subunits | Supports stable subunit width and geometry |
| Intermittent bond applicator | Deposits resin at set intervals | Forms flexible connections between neighboring subunits |
| UV cure and take-up system | Handles UV curing, cooling, inspection, and final winding | Helps protect bond quality and organized fiber placement |
UV Curing, Cooling, And Ribbon Take-Up Equipment
UV lamps cure the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Take-up equipment winds the finished ribbon with low, even tension. Proper winding protects the cured ribbon structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Alignment, Preparation, And Color Sequence Management
Reliable ribbon cable production starts with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification For Splicing And Maintenance
Consistent fiber color identification is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Fiber Position | Fiber Identification Color | Production Purpose |
|---|---|---|
| 01 | Blue | Begins the recognized fiber color sequence |
| 02 | Orange | Supports fast visual identification |
| 3 | Green | Helps preserve the established fiber order |
| 04 | Standard brown | Supports confirmation of subunit position |
| 5 | Standard slate | Creates a clear mid-sequence identifier |
| 06 | White | Improves visibility during inspection |
| 07 | Standard red | Supports accurate splicing records |
| 8 | Black | Maintains sequence recognition in trays |
| 9 | Standard yellow | Assists field restoration activities |
| 10 | Standard violet | Separates late-sequence fibers clearly |
| 11 | Standard rose | Supports high-count ribbon identification |
| Position 12 | Standard aqua | Finishes the standard 12-fiber color sequence |
Avoiding Fiber Twist And Tension Imbalance
Fiber guides and payoff units are important in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators meticulously monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application And UV Curing Process
The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method facilitates compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Bonds At Predetermined Intervals
Bond applicators place resin at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
A controlled applicator deposits a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends reduce sudden stress transitions when the cable bends or twists.
Creating Flexible And Strong Bond Interfaces
The wet-on-wet method involves applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features help the bond resist peeling while facilitating separation when required.
Managing Curing Performance
UV lamps must provide consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Process personnel carefully track bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Flexible Flat Cable And Fiber Ribbon Quality Control
Verifying every flat ribbon cable is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Frequent quality checks are important in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Inspection Of Bond Spacing, Ribbon Width, And Thickness
The spacing between bonds is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection procedures are used to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Quality Control Point | Items Checked | Production Value |
|---|---|---|
| Fiber sequence identification | Fiber number, color order, and placement | Supports reliable splice records and maintenance activities |
| Bonding pattern | Bond location, spacing, and subunit connection | Maintains flexibility and fiber organization |
| Ribbon profile | Width, thickness, and flatness | Supports compatibility with handling and splice equipment |
| Surface condition | UV cure state, coating coverage, and defects | Protects the ribbon against damage during take-up |
Mechanical And Optical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing encompasses evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Optical attenuation checks and handling evaluations are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Precision Winding, Automation, And Production Efficiency
Efficient ribbon manufacturing depends on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Process Data Monitoring And Line Synchronization
Production controls coordinate payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Production records track fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Regular dimensional checks reveal ribbon width or thickness deviations early.
- Winding records support lot traceability and downstream handling.
Ribbon Winding For Downstream Cable Production
Precision winding equipment ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
When producing custom ribbon cable, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitored Area | Primary Control Focus | Downstream Benefit |
|---|---|---|
| Payoff section | Consistent tension with correct fiber color order | Consistent ribbon organization during cable assembly |
| Bond application | Consistent spacing and resin volume | Flexible ribbon behavior during handling |
| UV curing | Controlled lamp output and exposure time | Properly cured bonds before ribbon winding |
| Precision ribbon winder | Even traverse, spool tension, and layer control | Controlled ribbon feed into loose tube or central tube production |
Ribbon Cable Applications, Fusion Splicing, And Connector Planning
Ribbon fiber plays an important role in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A meticulously planned ribbon cable assembly enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Benefits Of Mass Fusion Splicing
A ribbon fusion splicer allows the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, by comparison necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Connection Planning For Dense Links
Multi-fiber links frequently employ MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
System planning must also account for transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Planning Item | Primary Control | Common Network Use |
|---|---|---|
| Fiber ribbon count | Required splice capacity and cassette configuration | 12-fiber and 24-fiber network backbones |
| MPO/MTP cable connector | Polarity, gender, and port compatibility | High-density data center and 5G equipment-room connections |
| Harness or fanout cable | Breakout of multi-fiber links into individual fiber connections | Network switch connections and patch fields |
| Link loss budget | Permitted optical loss across splices, connectors, and fiber | High-speed optical transmission routes |
Shanghai Weiye OFC Equipment For Ribbon Line Projects
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to ensure consistent processing, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY equips each phase of ribbon handling, curing, and winding with suitable machinery.
SHWY Optical Fiber And Cable Machinery Experience
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
During 2020, SHWY moved to independent operation, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant Production Equipment From SHWY
The SHWY equipment portfolio includes a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
For ribbon projects, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
Additional SHWY equipment includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Summary
A complete intermittent bonded ribbon line brings together fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step helps preserve fiber sequence while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resulting ribbon structure provides efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Successful project planning goes beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
